SOUND PACK FOR TESLA
Seamless Integration, Pure Audison Sound
Hi-End Plug & Play audio solutions for Tesla Model 3 and Model Y, engineered for flawless integration with both Base Audio and Premium Sound systems.
Why Audison for Tesla
Tesla vehicles set the benchmark for innovation and performance. Yet, even in such advanced cars, the factory audio system leaves room for improvement.
With more than three decades of Hi-End car audio expertise, Audison has created Sound Packs that integrate seamlessly into Tesla vehicles, combining premium sound quality with Plug & Play convenience.

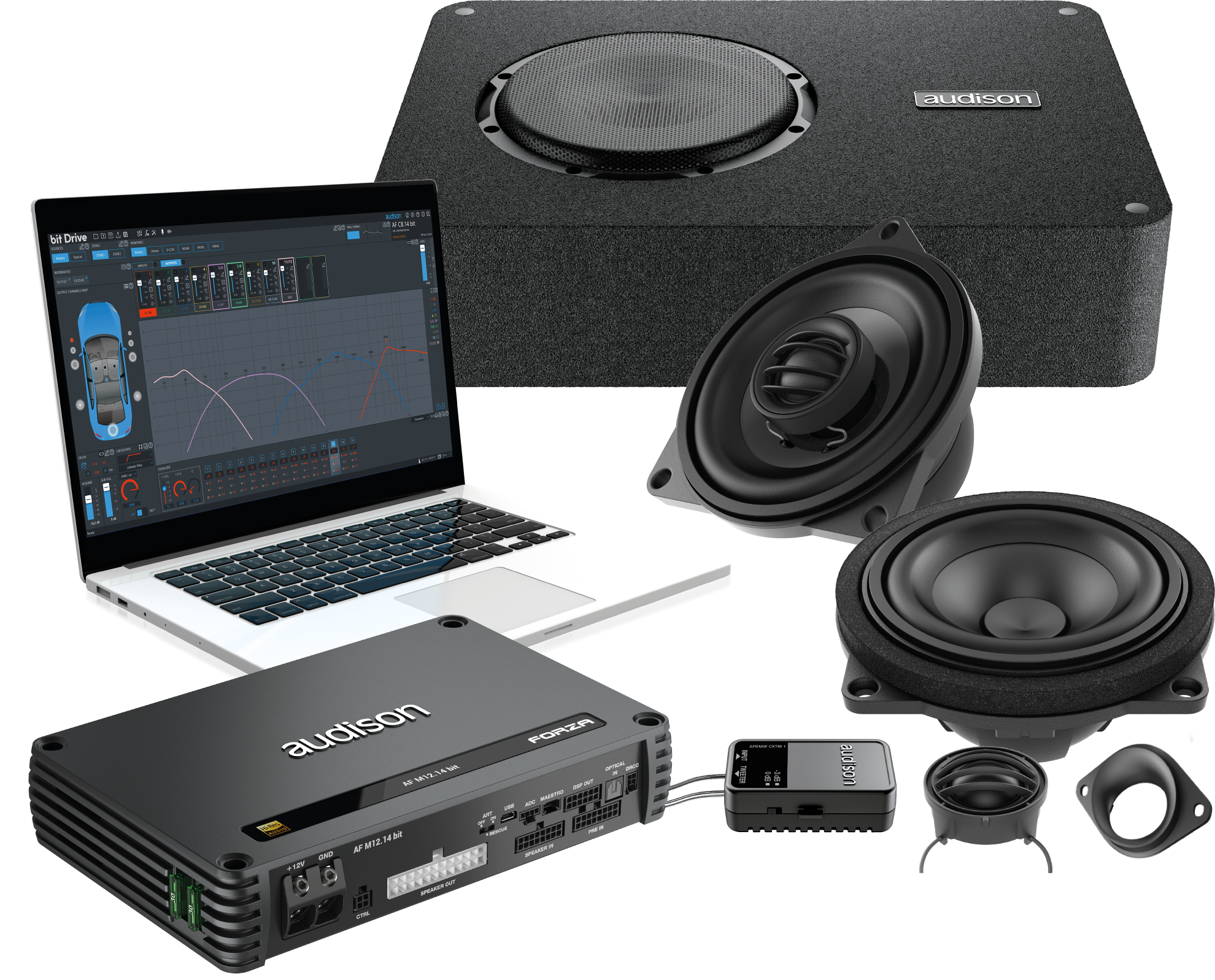

The Tesla Sound Pack Range
Rediscover Detail and Clarity

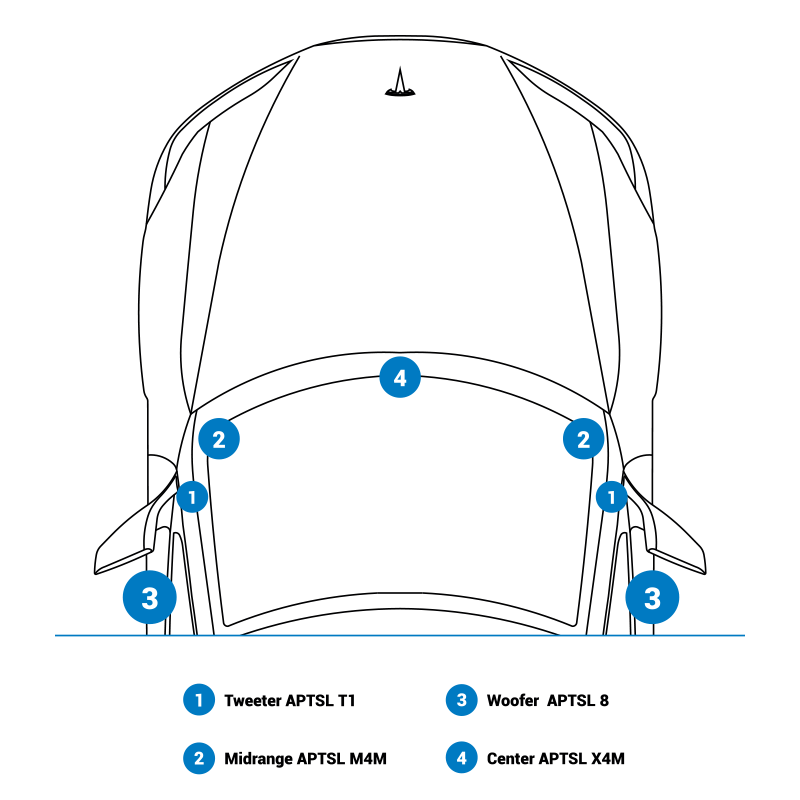

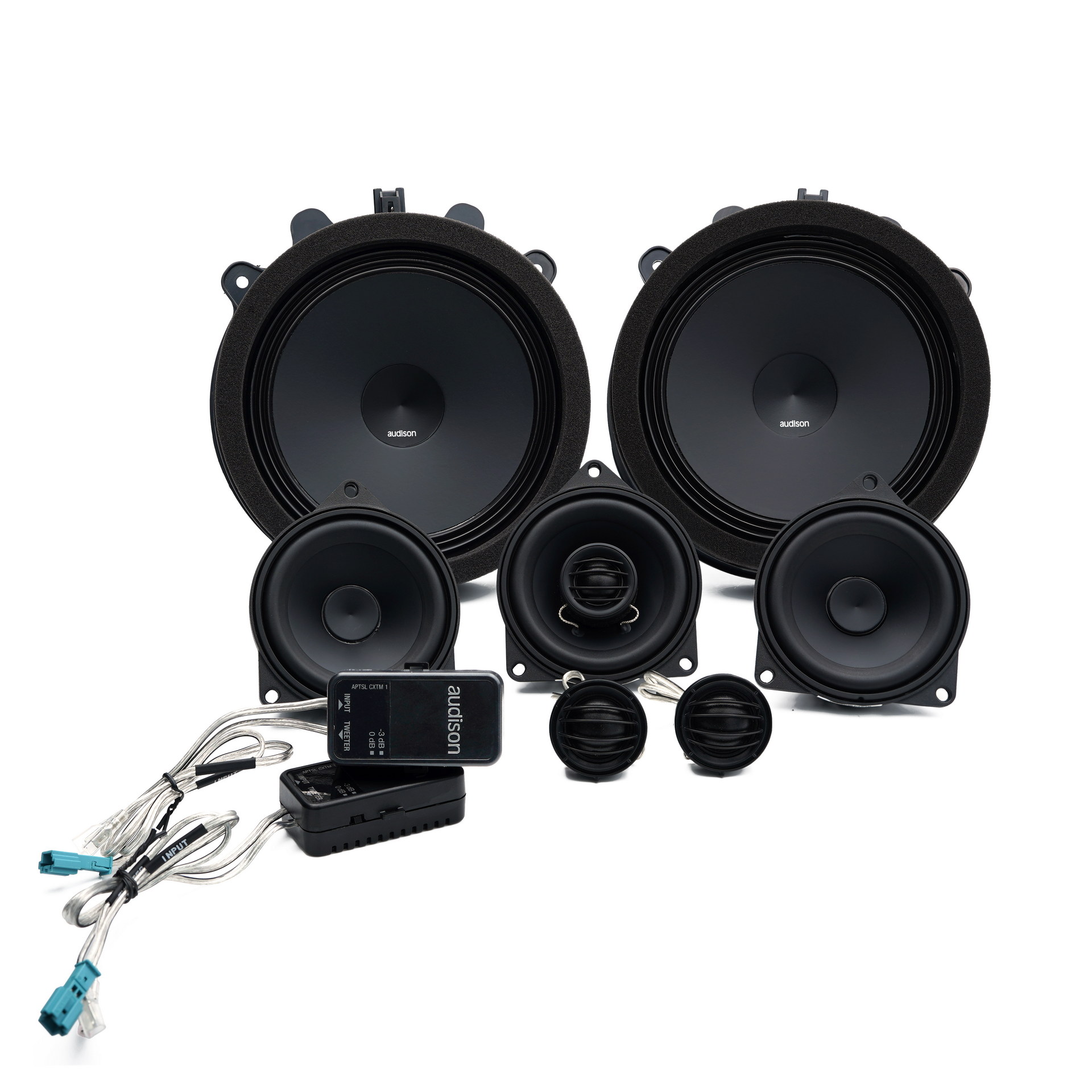

Speaker Upgrade Kit AP TSL 3Y SPK KIT
Upgrade your Tesla’s most important speakers with Audison’s premium technology. The kit introduces 29 mm Tetolon tweeters, 100 mm midranges, a 200 mm woofer pair and a 100 mm coaxial center, all engineered with neodymium motors and cast-aluminum frames. Every component is designed for maximum precision, lower distortion and improved dynamics.
Watch the tutorial and install your AP TSL 3Y SPK KIT with ease.
The result is a richer soundstage, more natural voices and instruments, and a clear sense of space that transforms every journey into an emotional listening experience.
- Upgrades front and center speakers for maximum sonic impact
- Includes 29 mm Tetolon tweeters, 100 mm midranges, 200 mm woofers, 100 mm coaxial center
- Provides clearer detail, deeper bass and reduced distortion
- 100% Plug & Play with wiring and mounting adapters included
Converts Tesla Base Audio into a fully active four-way system with powered OEM tweeters and a dedicated subwoofer
- AF M12.14 bit 12-channel DSP amplifier with 1080 W
- APBX 10 S4S sealed subwoofer, 250 mm

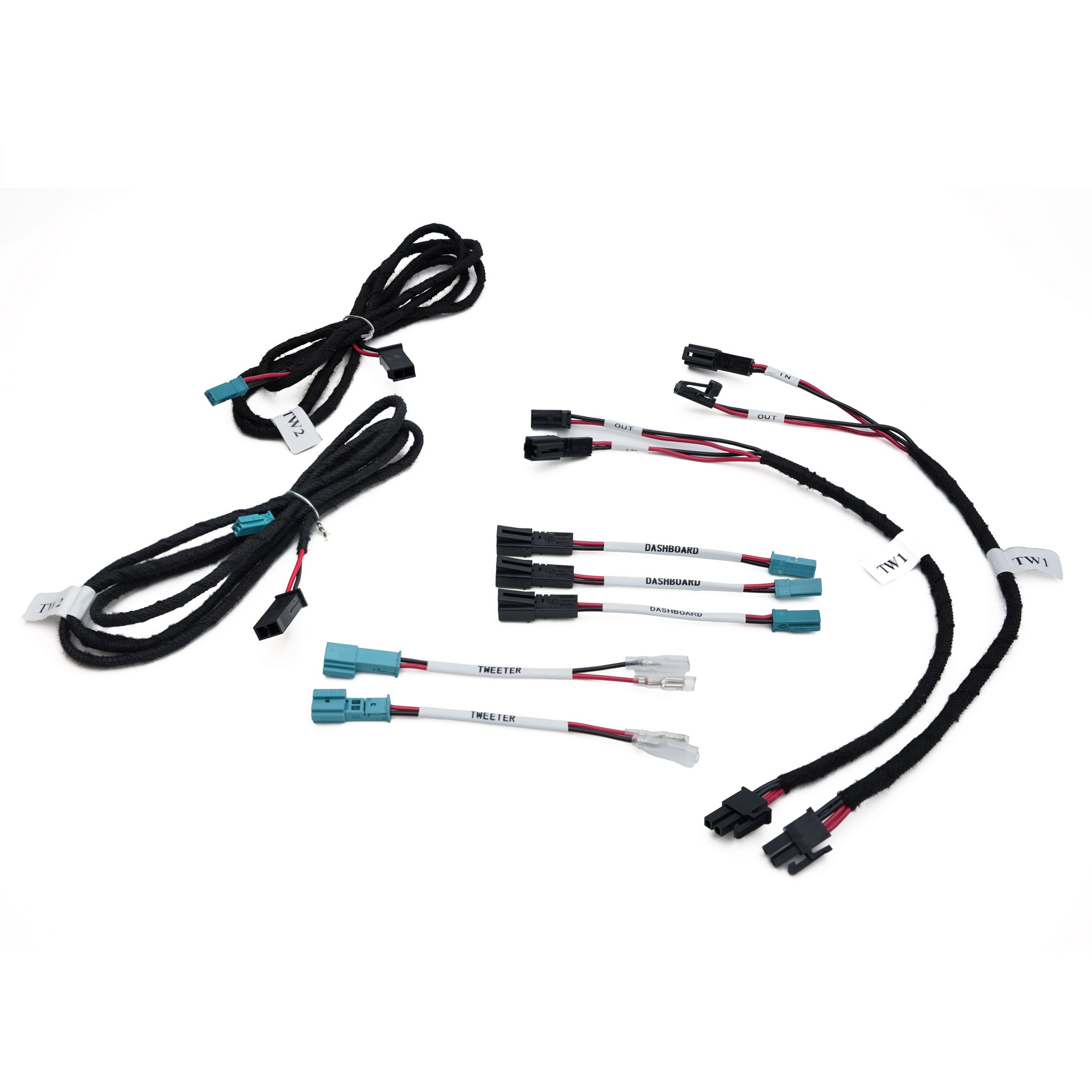

- Dedicated CN TSL 3YB 01 harness with custom bracket
Power, Control and Tuning Excellence

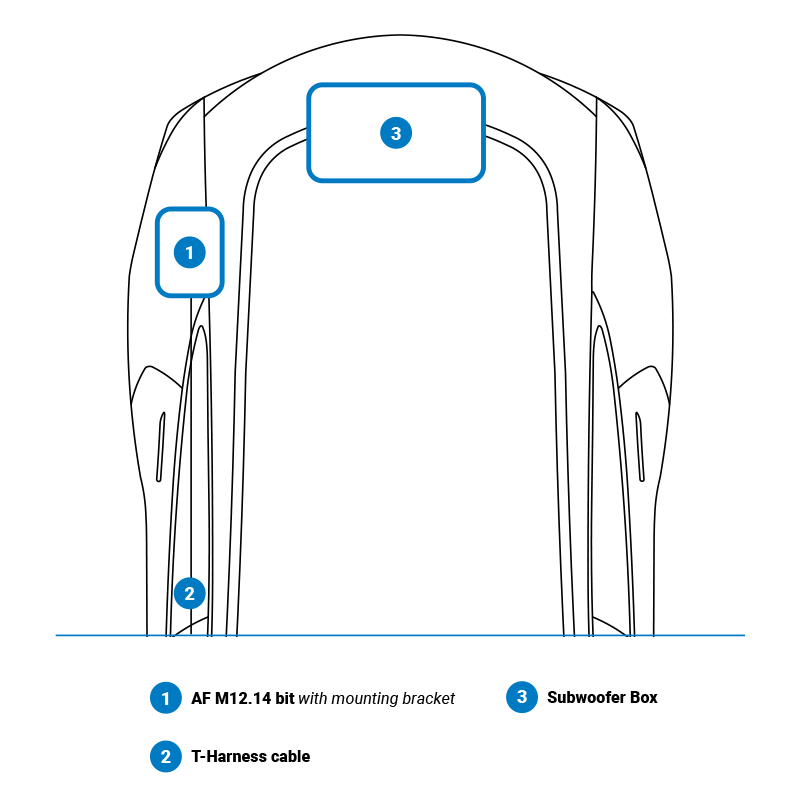

Base DSP/Sub Upgrade Kit AF TSL 3YB AMP KIT

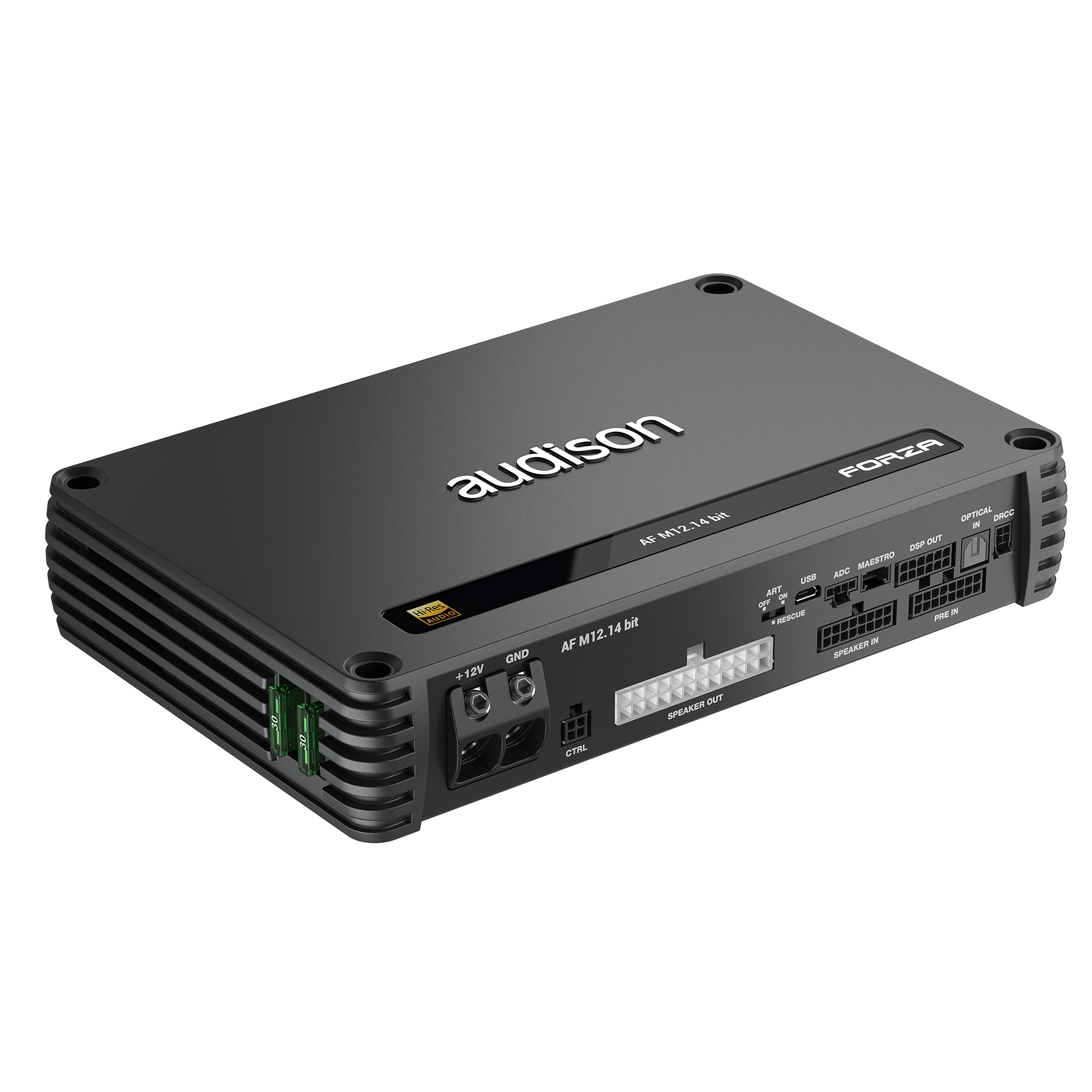

At the heart of this upgrade is the award-winning AF M12.14 bit DSP amplifier, delivering 1080 W of pure Audison power. More than just an amplifier, it carries a Tesla-specific tuning file meticulously developed by Audison engineers, reversing OEM processing and rebuilding the soundstage with perfect timing, phase and equalization.

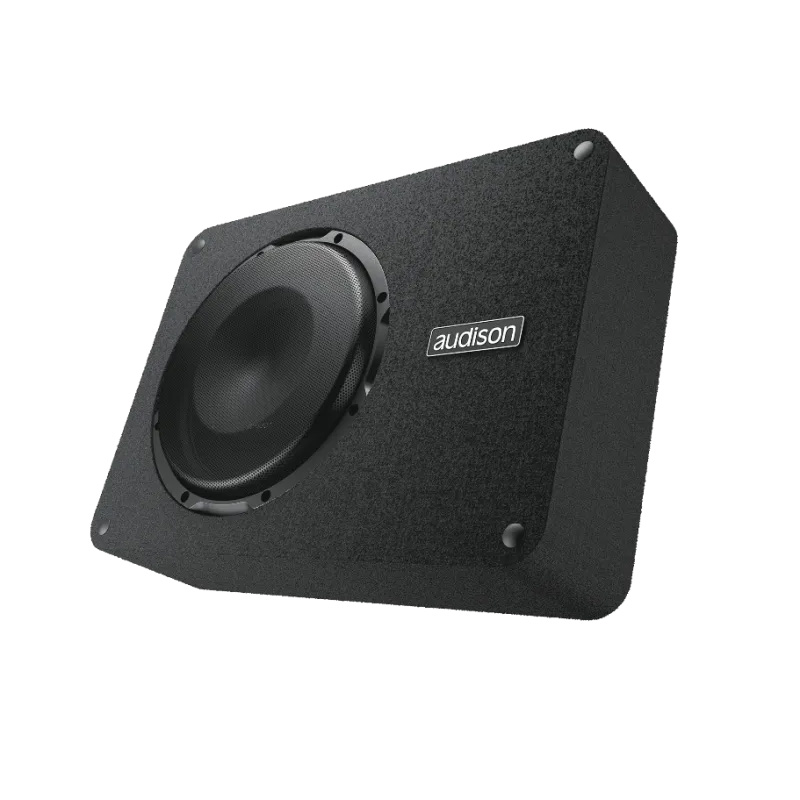

The system adds a dedicated APBX 10 S4S subwoofer, positioned under the load floor for powerful, rattle-free bass. The included CN TSL 3YB 01 harness integrates seamlessly, while the amplifier remains hidden thanks to a custom Tesla bracket.
For Model 3 Base Audio systems, this kit is a revelation: inactive tweeters come to life, a subwoofer is finally added, and the entire system is transformed into a full active setup. What was once flat and limited becomes full, dynamic and emotionally engaging.
Watch the tutorial and install your AF TSL 3YB AMP KIT step by step.
Refined Power for Premium Systems
Pro DSP/Sub Upgrade Kit (AF TSL 3YP AMP KIT)
For Tesla owners with Premium Sound, this kit elevates performance to a new level. The AF M12.14 bit DSP amplifier with F4IN card and the APBX 10 S4S subwoofer deliver greater headroom, tighter bass and extraordinary imaging.
But the real magic lies in the DSP tuning work by Audison engineers. By undoing Tesla’s factory processing and applying a bespoke calibration, they created a new reference for clarity, balance and emotional impact. The result is a soundstage that feels natural, immersive and alive in every seat.
Watch the tutorial and install your AF TSL 3YP AMP KIT step by step.
The system integrates seamlessly with Tesla’s infotainment interface, allowing intuitive control of the subwoofer level while unlocking a new dimension of depth, power and musical emotion.
- AF M12.14 bit DSP amplifier with F4IN card, engineered for Tesla’s 16V environment
- APBX 10 S4S sealed subwoofer, 250 mm, optimized to replace the OEM 200 mm unit with higher impact and deeper extension
- CN TSL 3YP 01 dedicated harness and Tesla-specific mounting bracket
- Maintains Tesla infotainment’s subwoofer level control while improving stereo imaging and overall linearity
The Ultimate Tesla Audio Experience
Complete Packages
For those who demand nothing less than perfection, Audison offers the Complete Base Audio Kit and Complete Pro Audio Kit, combining the Speaker Upgrade with the DSP/Subwoofer package.
Together, they deliver unprecedented dynamics, seamless integration and breathtaking realism. It is the closest thing to sitting in a concert hall, with the emotional intensity of live music perfectly synchronized to the driving experience.
NOTE: at this time, 2024+ Model 3 “Highland” and 2025+ Model Y “Juniper” variants are not compatible.
